linear

ill_circle large 2 Fly

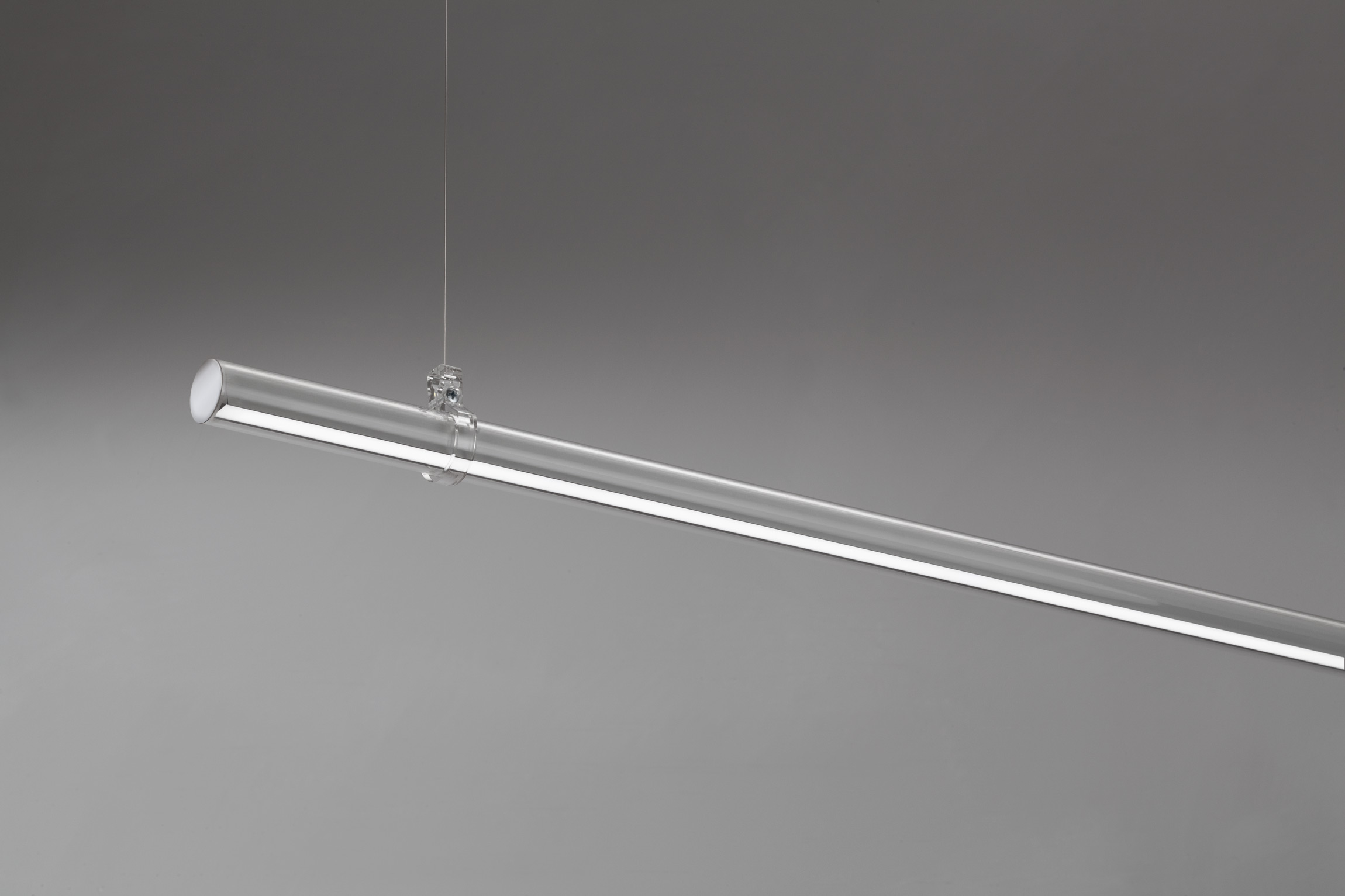

Linear lighting fixture for pendant application, section Ø30mm, length variable according to requirements (min. 60mm, max. 2985mm), IP20 (indoor), extruded anticorodal aluminium with dissipative function inside a transparent polycarbonate extruded body, anodized grey finish, high efficiency diffuser available in different types (opal, transparent or lenticular 20°)

White light LED with 12, 18 or 24W/m power, 24VDC or 48VDC, color temperature 2700K, 3000K, 4000K, 3 MacAdam step, CRI typ. 95, transparent double-insulated flat cable standard length 1m, insulation class Cl. III, Made in Italy.

Application

Suspended

Installation

Indoor

Sizes

sez Ø30mm
minimum length 60mm, maximum 2985mm

Finiture

White paint

Anodized Orange

Anodized Black

Anodized Brown

Polished Aluminum

Anodized Red

Anodized Green

Anodized Grey

Anodized Gold

Anodized Blue

Technical specification

IP Protection degree:
IP20

Cover/optic:
transparent, Opal, lenticular 20°

Voltage:
24Vdc; 48Vdc

Power:
12W/m; 18W/m; 24W/m

CCT:
2700K; 3000K; 4000K
3 MacAdam Step

CRI:
>90
