linear
Edge 3045 Fly

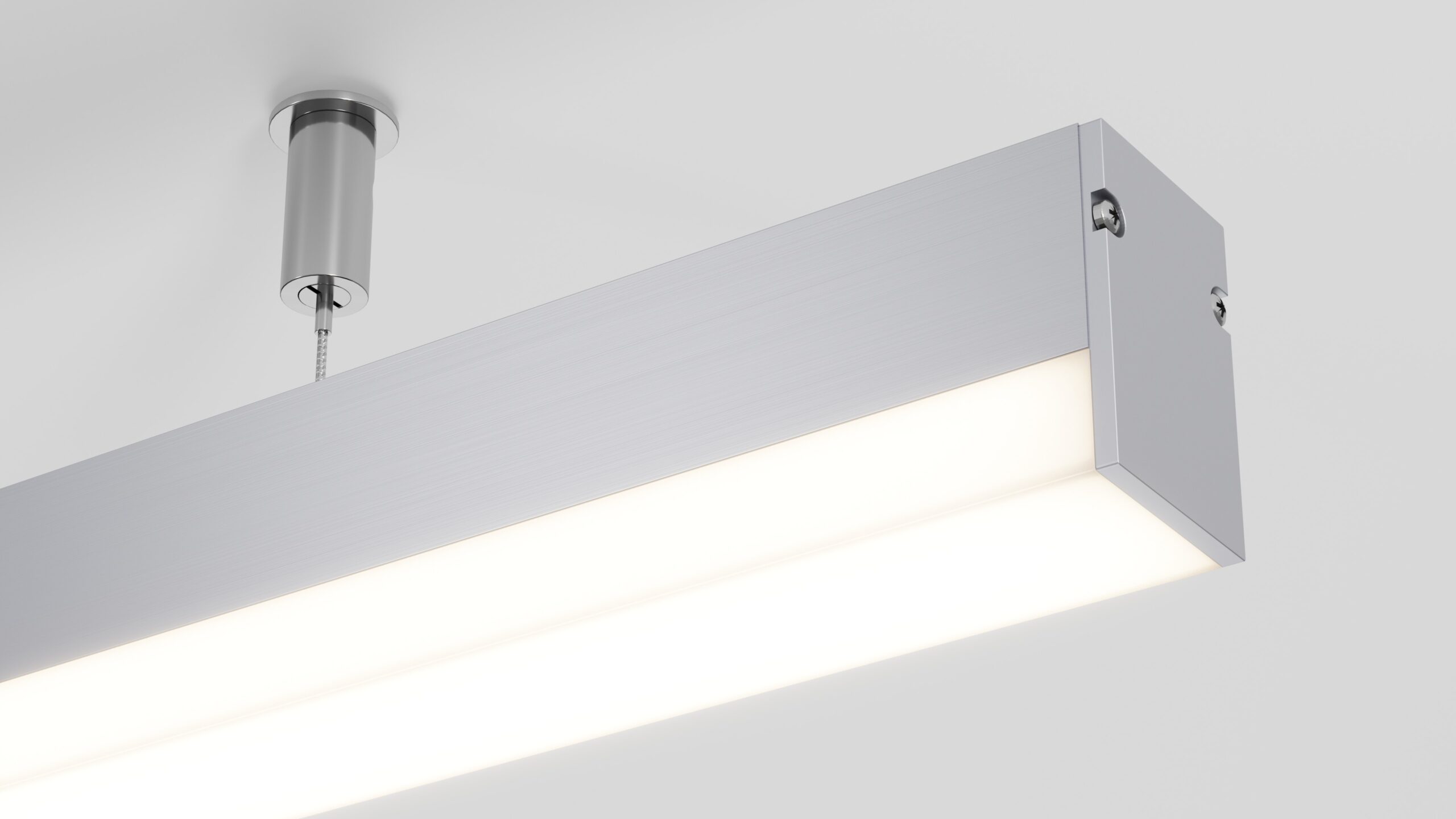

Linear lighting fixture for suspended application, section 30x45mm, length variable according to requirements (minimum 45mm, maximum 2995mm), IP20 (indoor), extruded anticorodal aluminium body with dissipative function, finish with increased anodising or powder coating in different colours, high-efficiency V0 polycarbonate opal diffuser.
White light, Dynamic White or RGB+W LEDs with 12, 18, 24, 30 or 40W/m power, 24VDC or 48VDC, color temperature 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 3 MacAdam Step, CRI typ. 95 or Full spectrum, transparent double-insulated flat cable standard length 1m, insulation class Cl. III, Made in Italy.
Application
Suspended
Installation
Indoor
Sizes
sez 30x45mm
Minimum length 45mm, maximum 2995mm
Finiture
Powder coating White
Powder coating Red
Powder coating Blue
Polished Grey Aluminum
Powder coating Black
Powder coating Orange
Powder coating Green
Anodized Grey
Powder coating Yellow
Powder coating Brown
Technical specification
IP Protection degree:
IP20
Cover/optic:
Opal
Voltage:
24Vdc; 48Vdc
Power:
12W/m; 18W/m; 24W/m; 30W/m; 40W/m
CCT:
2700K; 3000K; 3500K; 4000K; 5000K; 5700K
3 MacAdam Step
CRI:
typ 95; Full Spectrum
