linear

Edge 1842 Fly

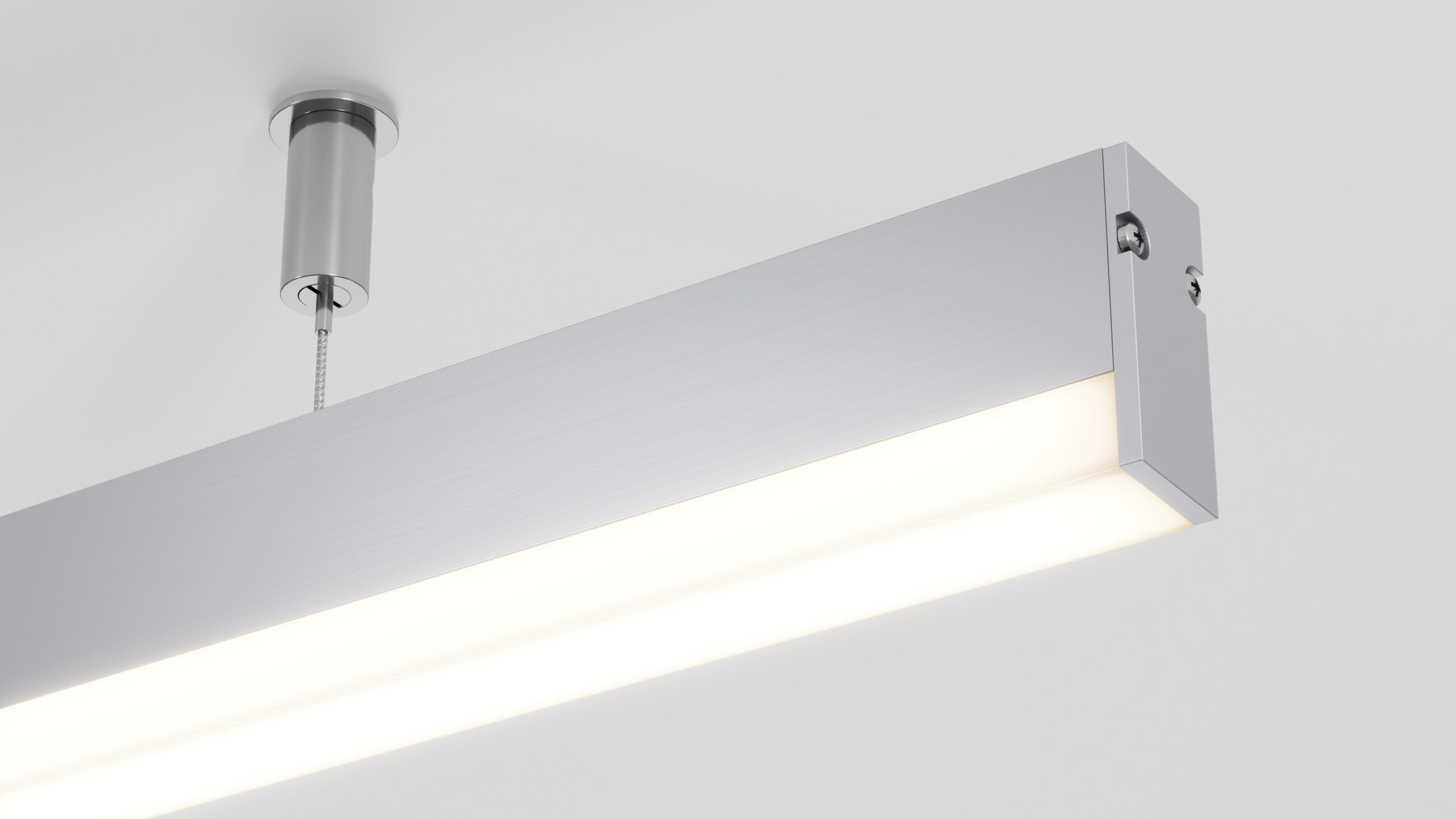

Linear lighting fixture for suspended application, section 18x42mm, length variable according to requirements (minimum 45mm, maximum 2995mm), IP20 (indoor), extruded anticorodal aluminium body with dissipative function, finish with increased anodising or powder coating in different colours, high-efficiency V0 polycarbonate opal diffuser.

White light, Dynamic White or RGB+W LEDs with 12, 18, 24 or 30W/m power, 24VDC or 48VDC, color temperature 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 3 MacAdam Step, CRI typ. 95 or Full spectrum, transparent double-insulated flat cable standard length 1m, insulation class Cl. III, Made in Italy.

Application

Suspended

Sizes

sez 18x42mm
Minimum length 45mm, maximum 2995mm

Finiture

Powder coating White

Powder coating Red

Powder coating Blue

Polished Grey Aluminum

Powder coating Black

Powder coating Orange

Powder coating Green

Anodized Grey

Powder coating Yellow

Powder coating Brown

Technical specification

IP Protection degree:
IP20

Cover/optic:
Opal

Voltage:
24Vdc; 48Vdc

Power:
12W/m; 18W/m; 24W/m; 30W/m

CCT:
2700K; 3000K; 3500K; 4000K; 5000K; 5700K
3 MacAdam Step

CRI:
typ 95; Full Spectrum
